Oil based drilling fluids chemical Organoclay Bentonite

Basic Info

Model No.: GDGEL-D92

Additional Info

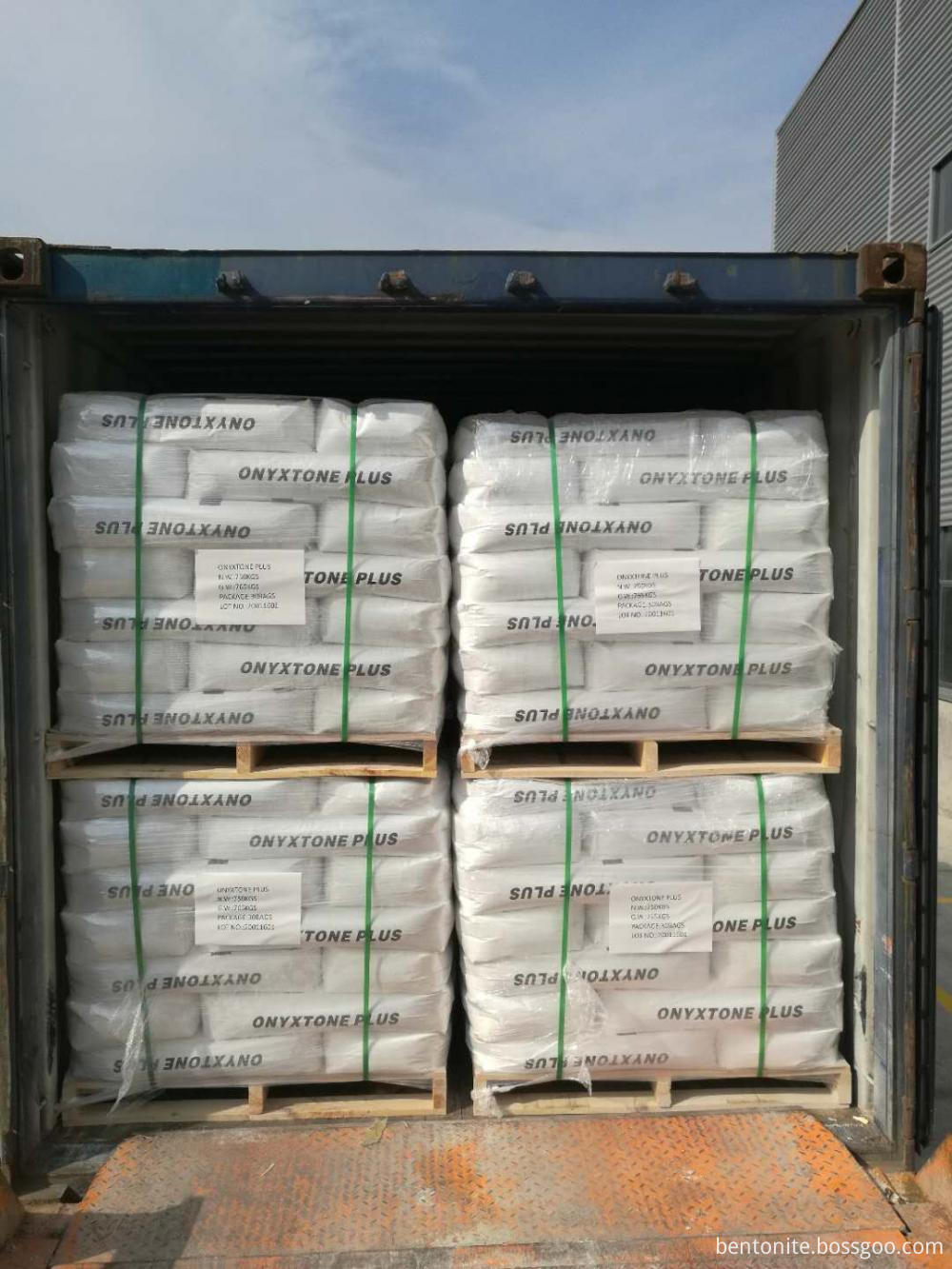

Packaging: 25kg/bag, 50LB/BAG

Productivity: 20000MT/YEAR

Brand: GDGEL

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 10000MT/YEAR

Certificate: ISO9001

HS Code: 38249999

Port: Shanghai,Ningbo,Tianjing

Product Description

GDGEL-D92 RHEOLOGICAL ADDITIVE

Organophilic Drilling Fluids Description:

GDGEL-D92 Organophilic Clay is a wet process improved viscosifier and gelling agent. It is an easy dispersing, rapid yielding organoclay that exhibits high performance efficiency in diesel oil, crude oil, Low BTEX base oil, mineral oil and synthetic containing base fluid formulation. It is stable and has good suspension and thixotropic features.

Rheological Additives Properties

Composition                      Organic derivative of a montmorillonite clay

Appearance                       Fine light powder,

Moisture content (105℃,2hr)         ≤4.0%

Bulk density                       0.45-0.48g/cm3

Fineness (<74μm, %)               ≥98%

5% Mineral Oil Gel, 600rpm, CP        ≥25

5% Mineral Oil Gel, YP               About 8

Drilling Fluid Chemicals Application:

Base oil:

●   Diesel Oils                                ● Crude Oils

●   Mineral Oils                        ● Synthetic Oil

●   Alpha Olefins                       ● Low BTEX base oil

Viscosifying drilling Fluids:

●   Oil based drilling fluids              ● Invert emulsion fluids

●   Workover fluidsl                    ● Completion fluids

●   Casing packs                      ● Packer fluids

●   Spotting fluids

Company Introduction:

GDNM combines knowledge and experience with the latest plant and technology. Established in 2008, as the up-rising star in the line of modified Bentonite, we have the newest organophilic clay manufacturing facility anywhere in the world. GDNM`s manufacturing plant is built to the latest design and highest safety and production standards. And with our location near Shanghai Port means we can deliver quickly and cost-effectively anywhere in the world. GDNM is committed to environmentally friendly materials for Coating, Paint, Ink, Oil drilling mud, Lubricating Grease, mortar, putties, water treatment etc. industrial. So we centered on waterborne Rheological Additive, at the same time, we make high purity solvent-born Organoclay Rheological additive which is no harmful to the environment. We believe that good quality and service make us to run faster and longer.

How to choose the suitable Organophilic Clay for Oil Drilling Fluids?

Generally, we recommend the grades according to the base oil.

Such as Diesel Oil, Mineral Oil, Synthetic oil and All-oil system.
